Changing Production Tag Quantities - Bitscan Touchscreen Scanner

These instructions are an addendum to the Bitscan non-touch barcode scanners for changing production quantities on tags.

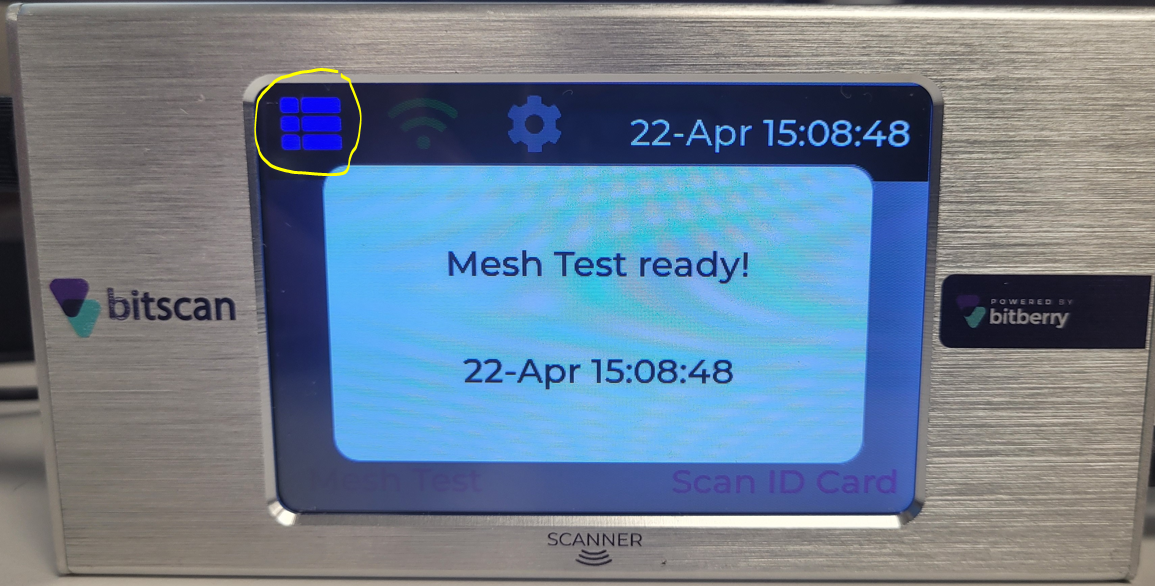

From the Bitscan device main screen either scan the "ADJUSTQTY" barcode or access the function from the App menu on the Bitscan device:

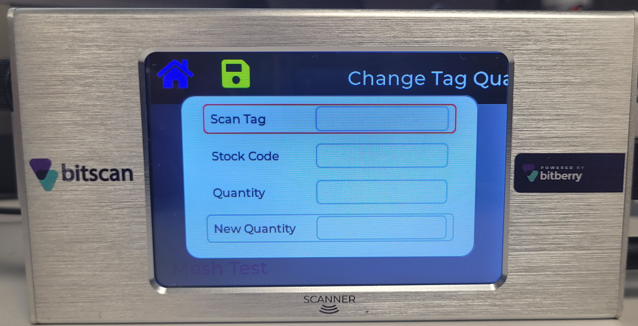

The following input screen will be displayed:

Scan the barcode of the tag the quantity is to be changed for. The system will do a call back to the office to retrieve detail and display them in the fields provided:

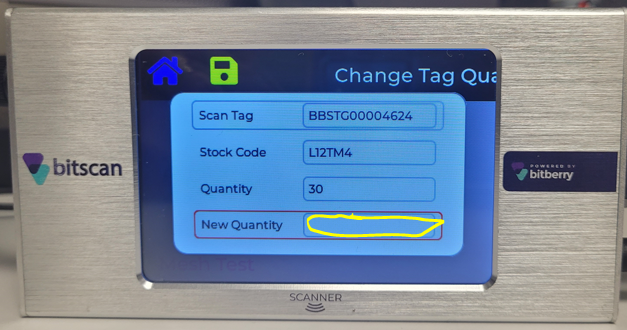

Press the "New Quantity" input box to display the onscreen numeric keyboard:

Use the keyboard to enter the new quantity for the tag and press the tick button to update the input form.

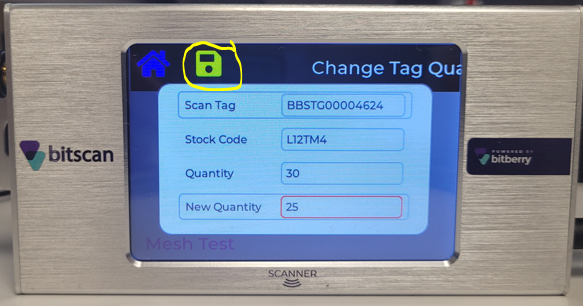

Press the save button to update the new quantity to the database:

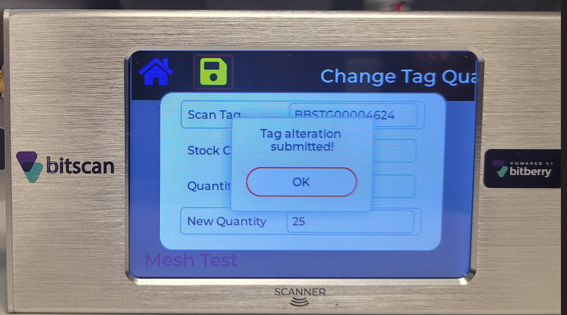

Press the OK button to close the prompt and return to the main process screen.
