Set a Dimension to Calculation

Before you begin

• You have Products open. See our article Getting Started with Products for more.
• You have the shape you wish to edit in view.


Steps to take

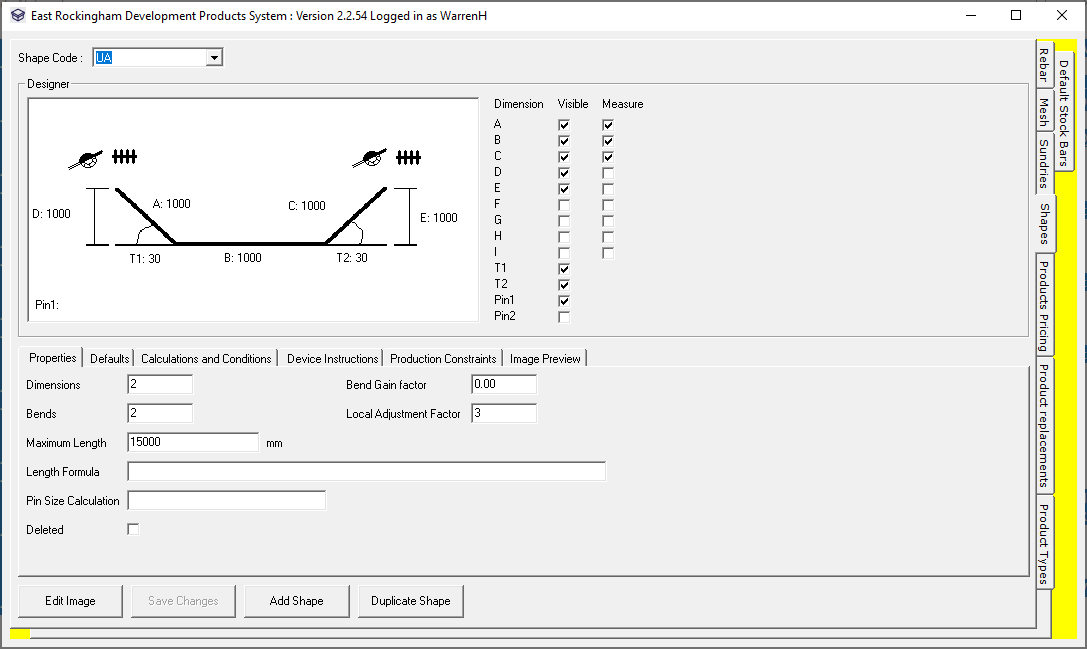

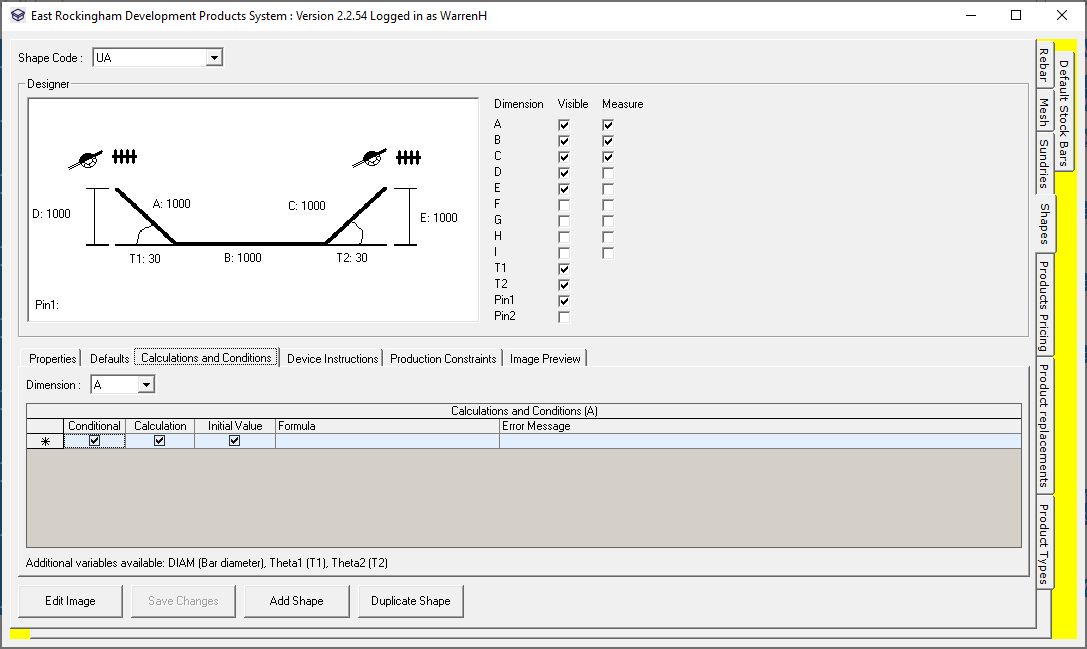

1. Click the Calculations and Conditions tab.

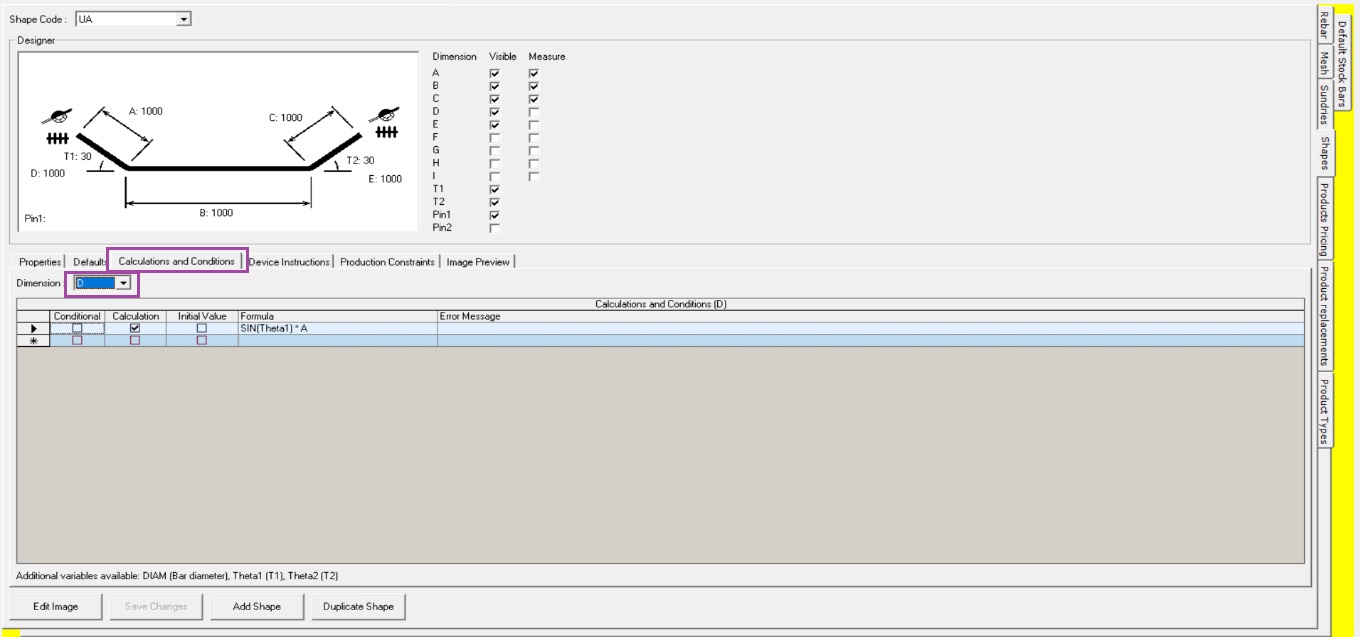

2. Select the dimension for which you wish to enter a calculation.
   In this example, dimension D has been selected.

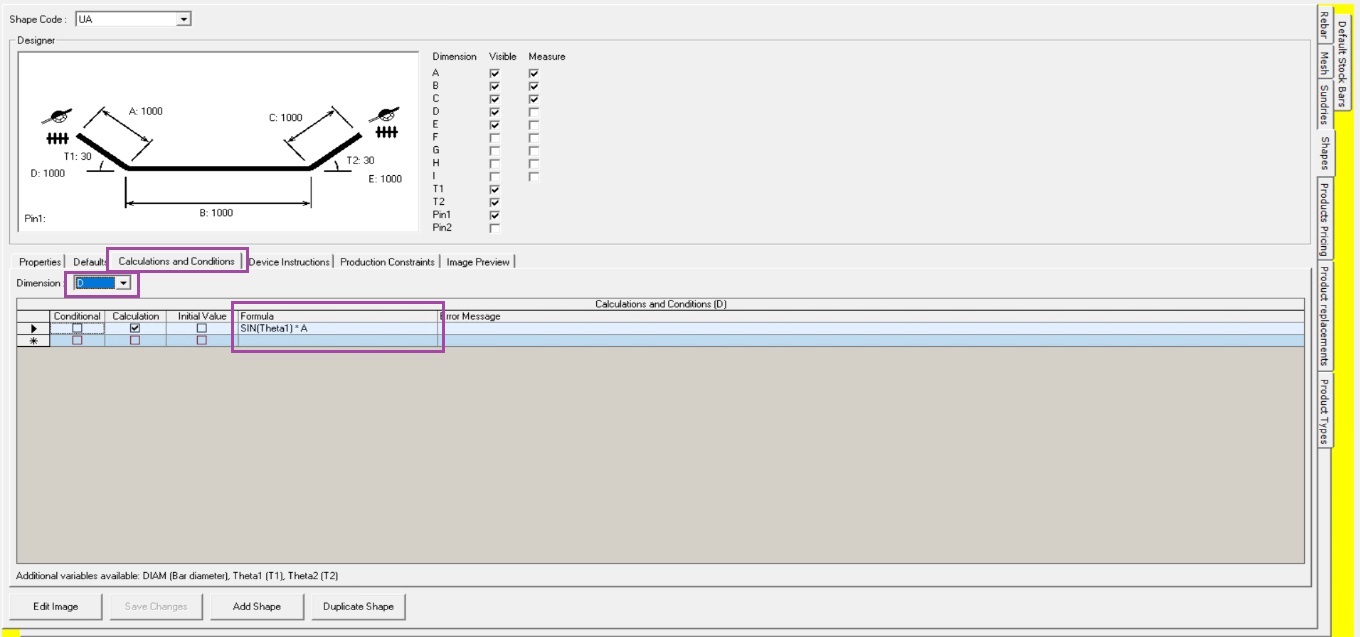

3. Click into the Formula.

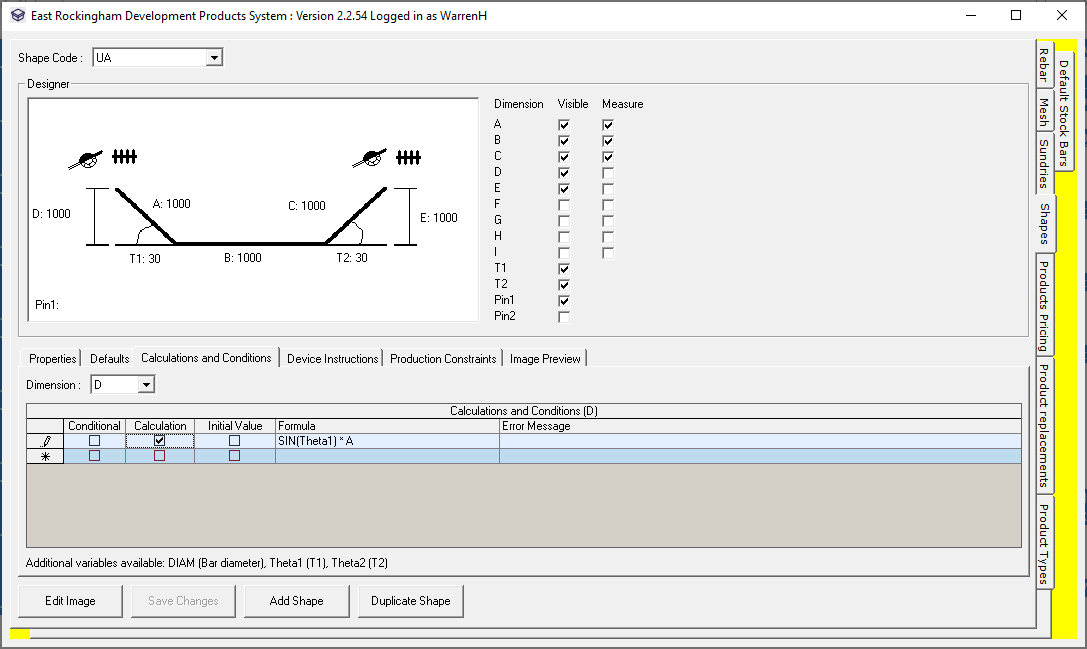

4. Enter a formula.
   As soon as you start typing, a new calculations and conditions record is created.
   Dimensions A - I can be referenced as is.
   Dimension T1 must be referenced as Theta1 and dimension T2 must be referenced as Theta2. It is important to use Theta1 and Theta2 as Thimbl expects exactly these values.


5. Check Calculation.
   This specifies the record is a calculation (as opposed to a condition or initial value.)

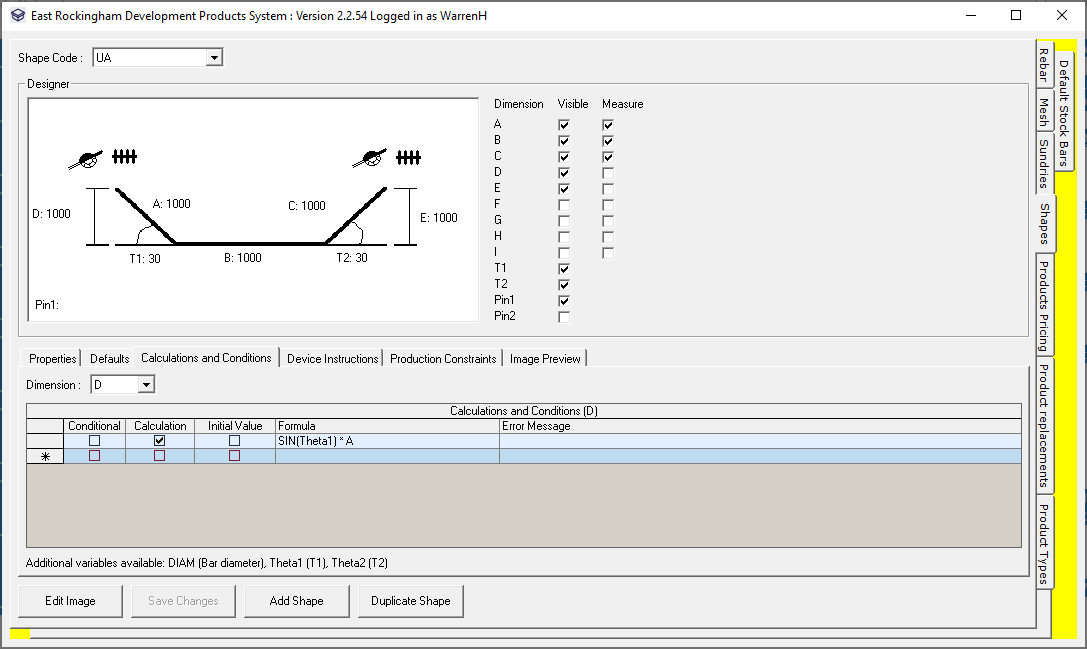

6. Click into the new row at the bottom. This ends editing.


Following the steps

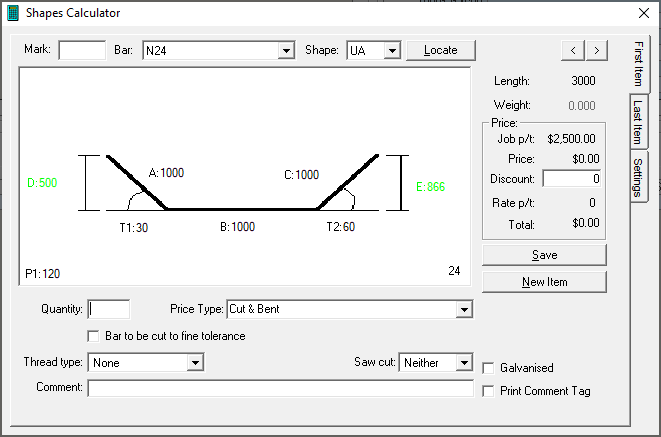

• When using the shape in Shapes Calculator in Scheduler, the dimension set to a calculation is shown in green and cannot be specified.


Where to from here?

• You may like to edit a shape image. See Edit a shape image.
