Review Draw Line Management Report Dashboard

Background

This Knowledge Base Article provides information needed to view Draw Line Management Dashboard Report from the ChromeInventory Dashboard Report Section.


Before You Begin


Steps to Follow

  1. Click on the Dashboard Reports button to access the reports. This will open up the Dashboard Reports page.

  2. Click Draw Line Management from the dropdown menu.

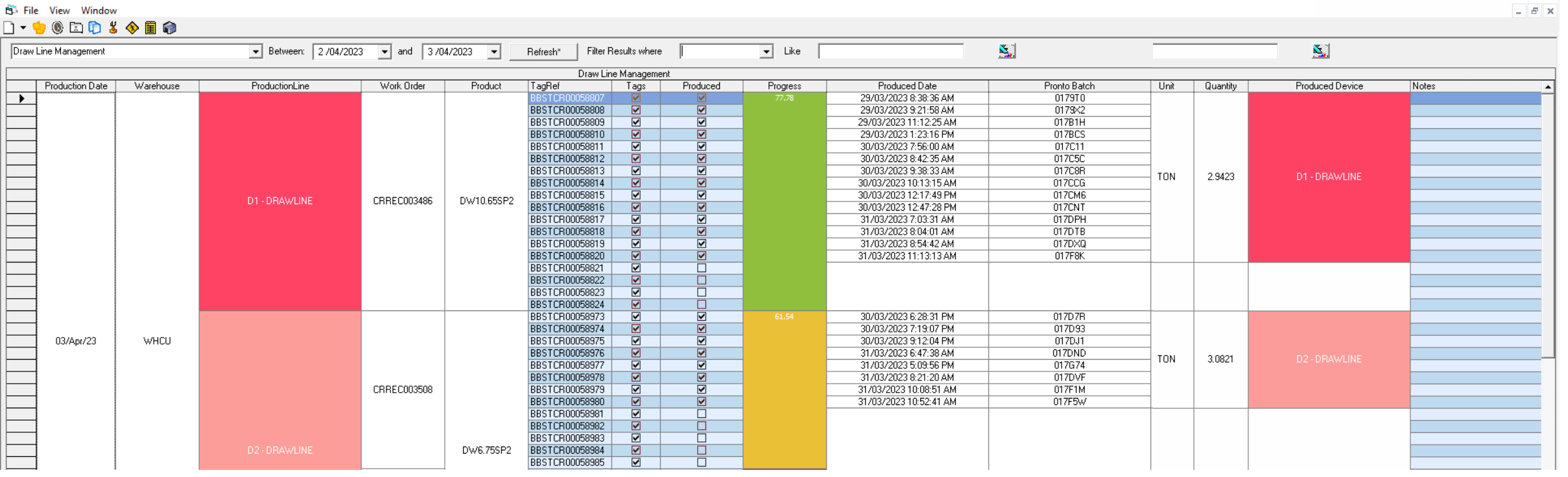

    The Draw Line Management contains the following details:
    Column Name
    Description
    Production Date
    The date on which the work order is sent for production
    Warehouse
    The details of the production site of the work order
    Production Line
    The machine selected for production of the work order
    Work Order
    The details of the work order.
    Product
    The item produced on the work order
    TagRef
    Related Tags for the products on  the work order
    Tags
    This column will get ticked with the related Tag Ref column
    Produced
    This column will get ticked when the Progress column comes to 100%
    Progress
    The status of the production will be displayed here
    Produced Date
    The production completion date will be displayed here
    Pronto Batch
    With a successful post on pronto, chrome will display batch code here.
    Unit
    Displayed what unit will be used in your company to gather products (For example Bags)
    Quantity
    The quantity measurement of products  produced in the  work order
    Produced Device
    The devices that are used in work orders will be displayed here.
    Notes Additional notes containing the delivery are displayed here with error messages.

  3. Double-click on a row to see more details about the transfer. See our article How to Create a Stock Transfer in ChromeInventory for more.


To apply filters on ChromeInventory Dashboard Reports, see our article Applying Filters on Dashboard Reports for more.
