Viewing Production Status in Bundle Tags

The Production Status window is intended to display the production data from either the current time or a selected date and up to 20 working days previous.

By default, Production Status is set to the current time each time it's opened.  You can also set the date you'd like to query from using the Selected Time control.

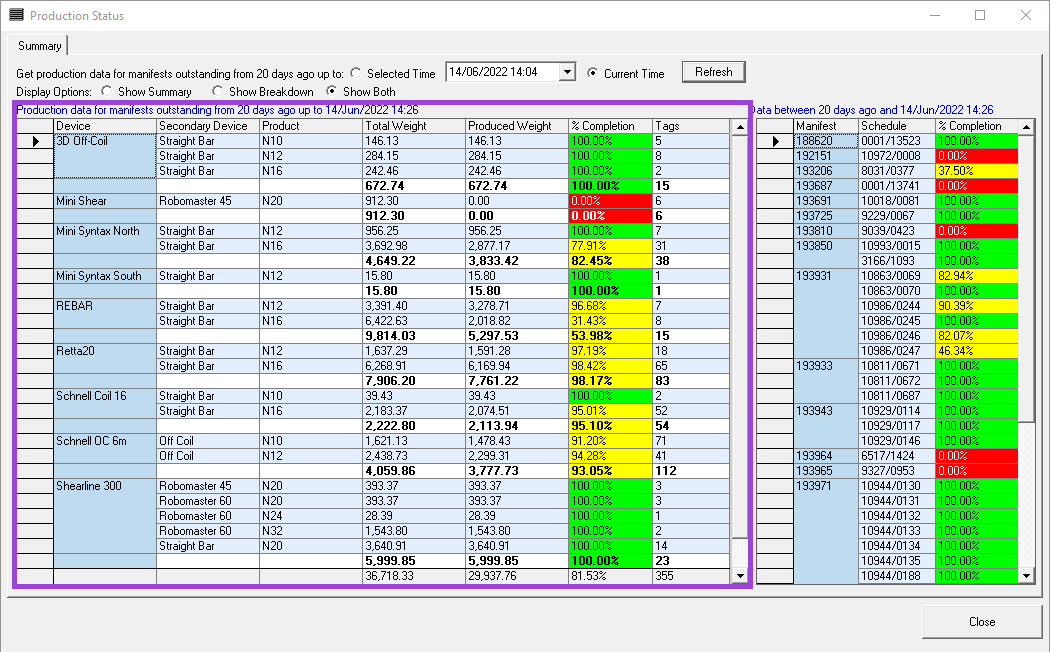

The production data for these date periods are then loaded into the Production Data grid.

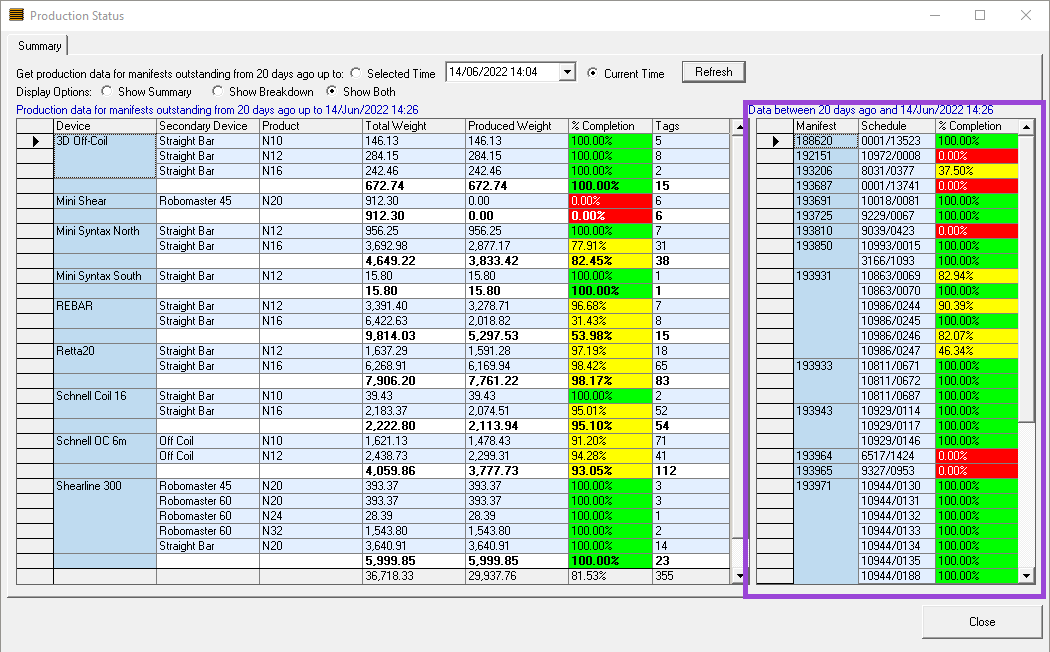

The Manifest grid displays all the manifests currently in production.

Viewing the Production Status from a Selected Date

1. To view the Production Status from a selected date, click the Selected Time check box.

2. Then choose the date from the dropdown Calendar control.

3. Click the Refresh button to reload the data in the Production Data grid.


Filtering the Production Status Grid

You can filter the Production Data grid to show products on a single manifest available in the current date range.  You can also filter the production data results in the Production Data grid to show summary information for each production device, a breakdown of products being created on each production device, or both.

To do so, simply select the appropriate radio button in the Display Options control or by using the Manifest grid.  By default, both the summary and breakdown are displayed on opening the Production Status window.

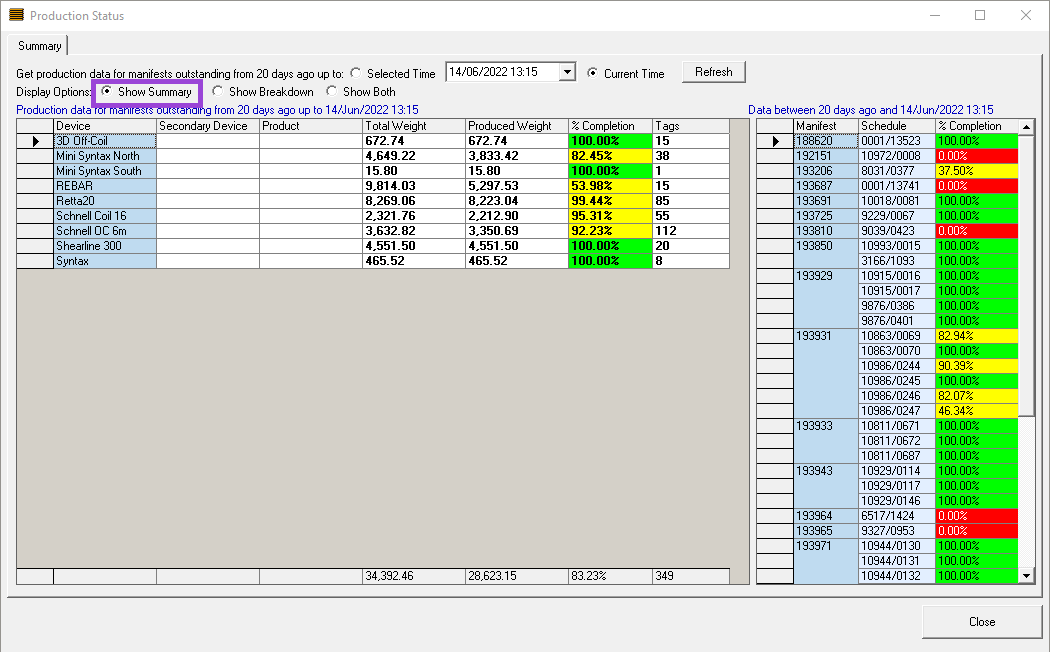

Show Summary

Select the Show Summary option in the Display Options control.  The Production Data grid will update automatically to display device totals only.

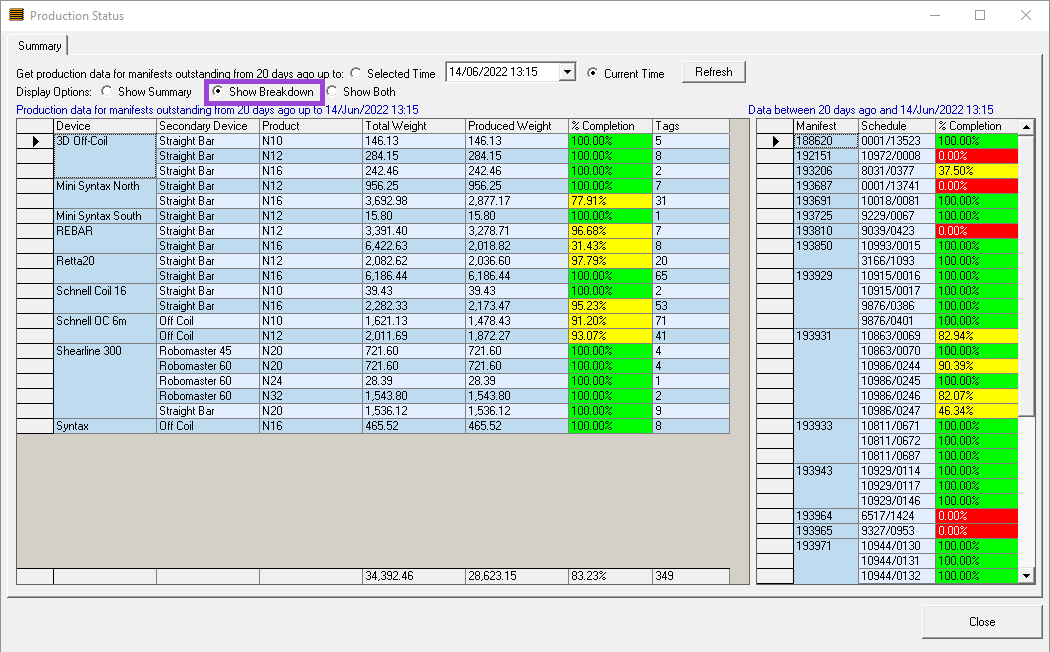

Show Breakdown

Select the Show Breakdown option in the Display Options control.  The Production Data grid will update automatically to display the product breakdowns against each device.

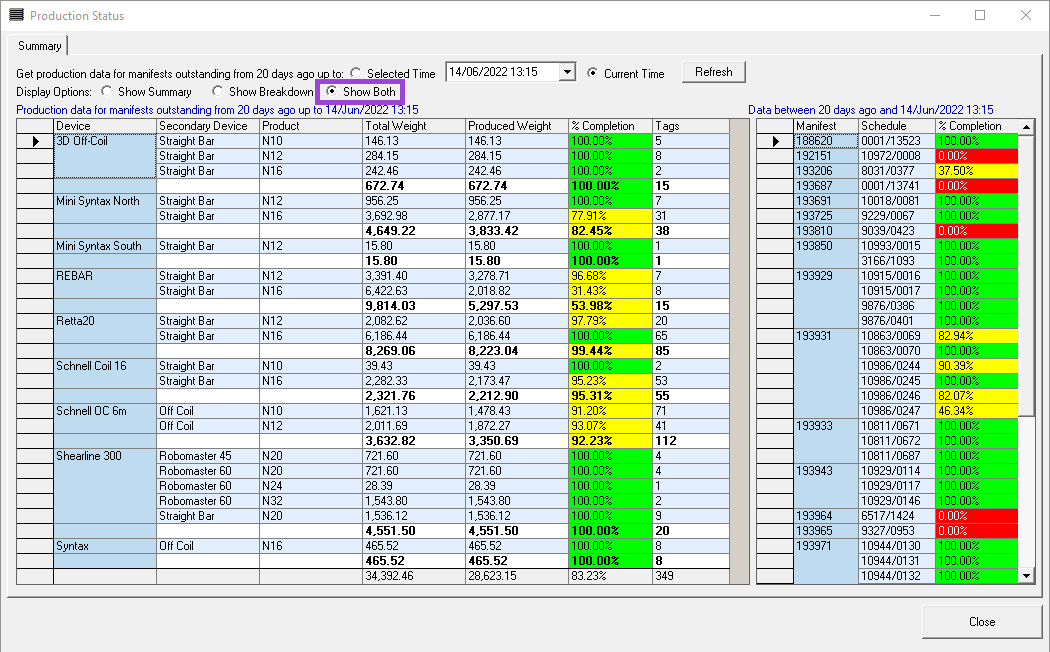

Show Both

Select the Show Both option in the Display Options control.  The Production Data grid will update automatically to display the default view Including both product breakdowns against each device and the device totals.

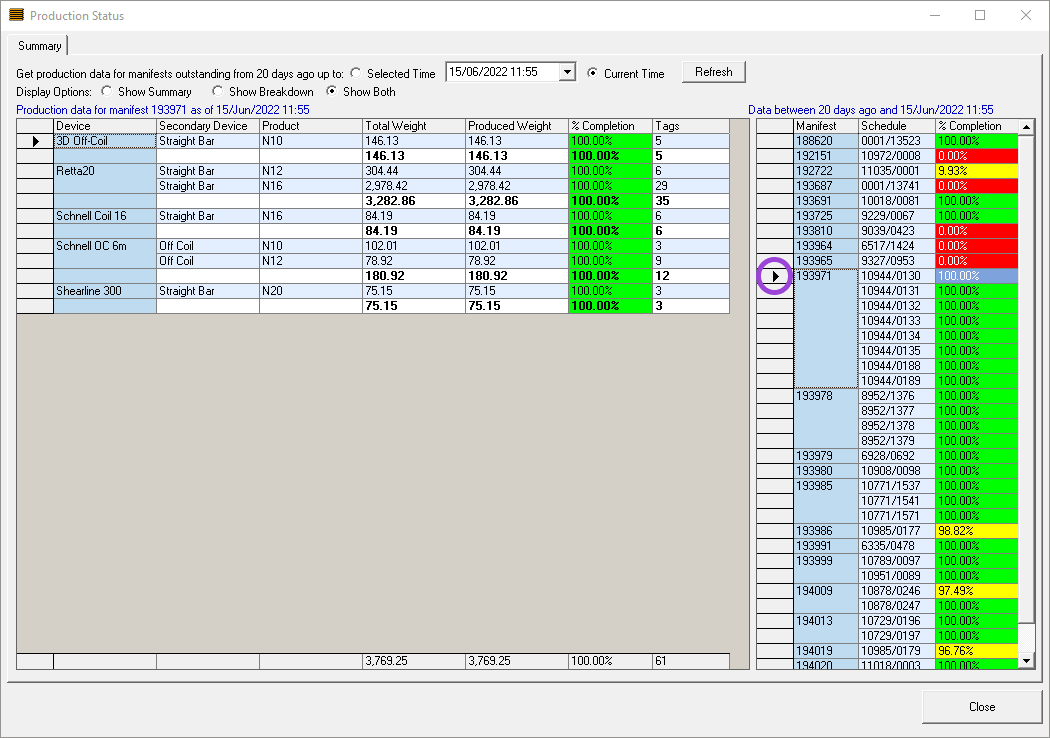

Showing a Single Manifest

Double click the row selector for your chosen Manifest in the Manifest grid.  The Production Data grid will update automatically to display the production data for the Manifest, filtered as per the settings in the Display Options control.
