Adding Drawing Numbers to a Schedule

Before you begin

Adding Schedule Drawing Number

1. Select a schedule from the Job Schedules section.

2. Press Schedule button – You will be prompted to select from sub-categories. Click Edit Schedule to open the Schedule Details window.

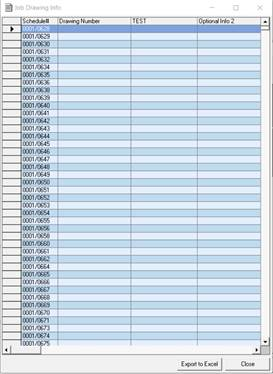

3. Press the Drawings button to open the Job Drawing Info window.



4. Find the schedule that you wish to enter the drawing numbers for.

5. Enter the drawing number in the Drawing Number column and additional details in the Extra Data columns.


6. Click on a different schedule to save the drawing number.
