Barcode Registering

Background

Elda Products is an administration application that allows business administrators, stock controllers and inventory managers to create and manage the parameters of products used throughout the Elda (Chrome) Application Suite.

Before You Begin

• Ensure you are logged into Elda(Chrome).  See our article Log in to an Elda Database for more.
• Ensure you access the Products app in Elda(Chrome) Folder. See our article Getting Started with Products for more.

Steps to Follow

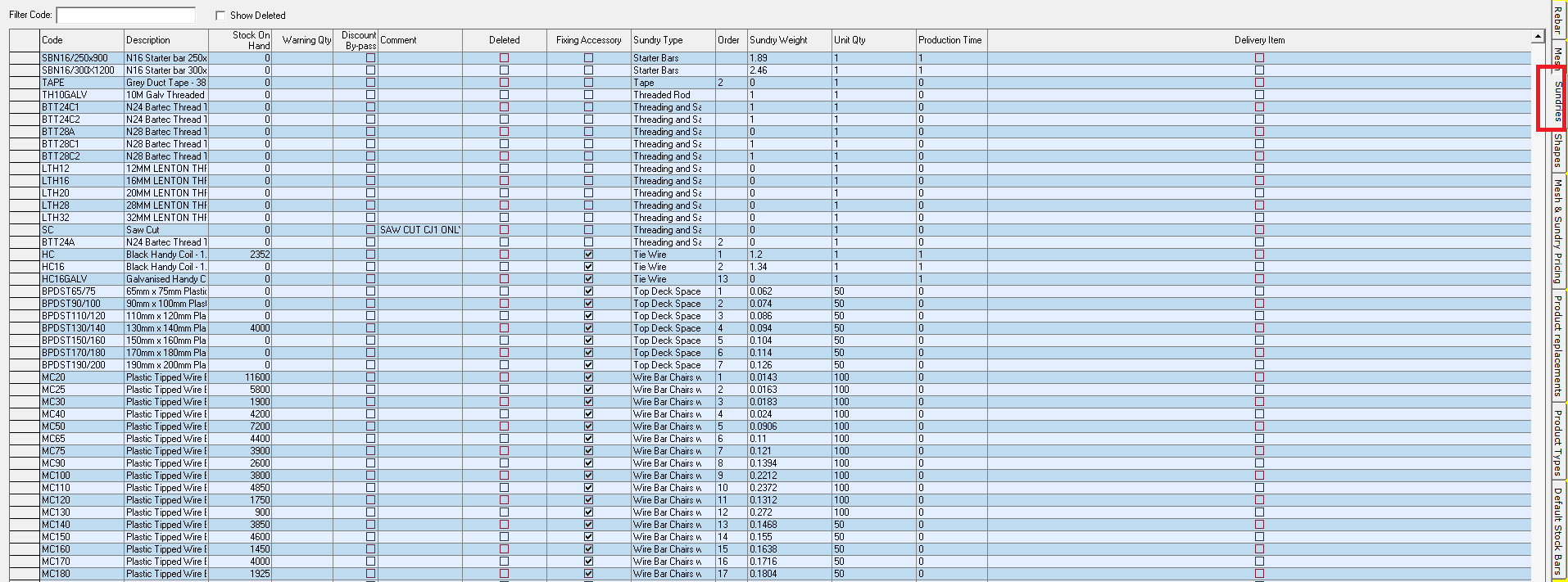

1. Click on the Sundries tab in the Products Application. This will open up the Sundries Information.
2. Click on the Register Barcode which is left side on the bottom of the Product window.

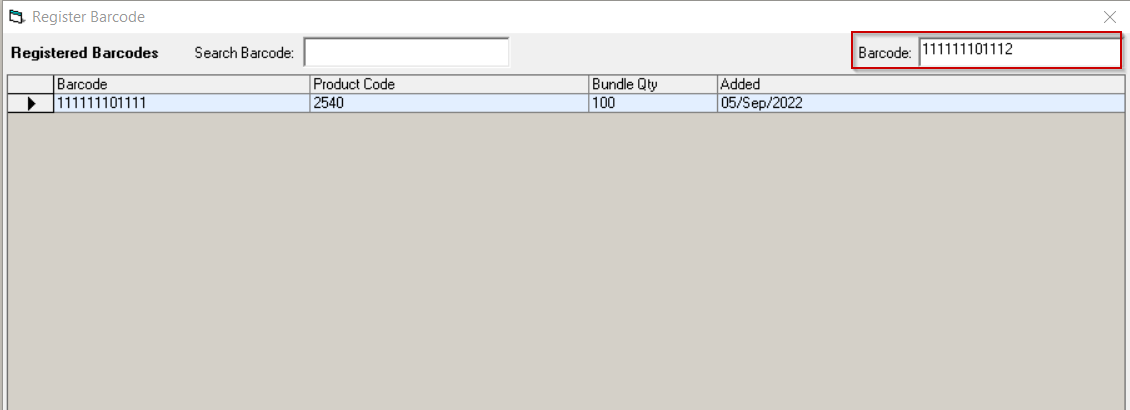

3. Register Barcode window open, please enter barcode number and press enter.

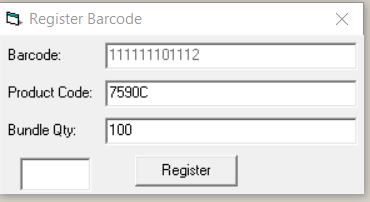

4. Another small window open, enter Product code and bundle qty and click on Register button. For example:- Product code: 7590C , Bundle Qty :- 100



5. Barcode added message displayed.

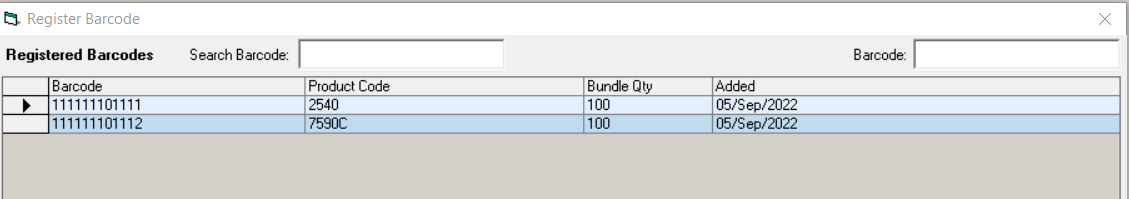

6. Register window looks like as :



7. We can enter Barcode in the Reoquote.

Before you begin

• Ensure you are logged into the Elda(Chrome) ReoQuote Application.  See our article Getting Started with ReoQuote for more.

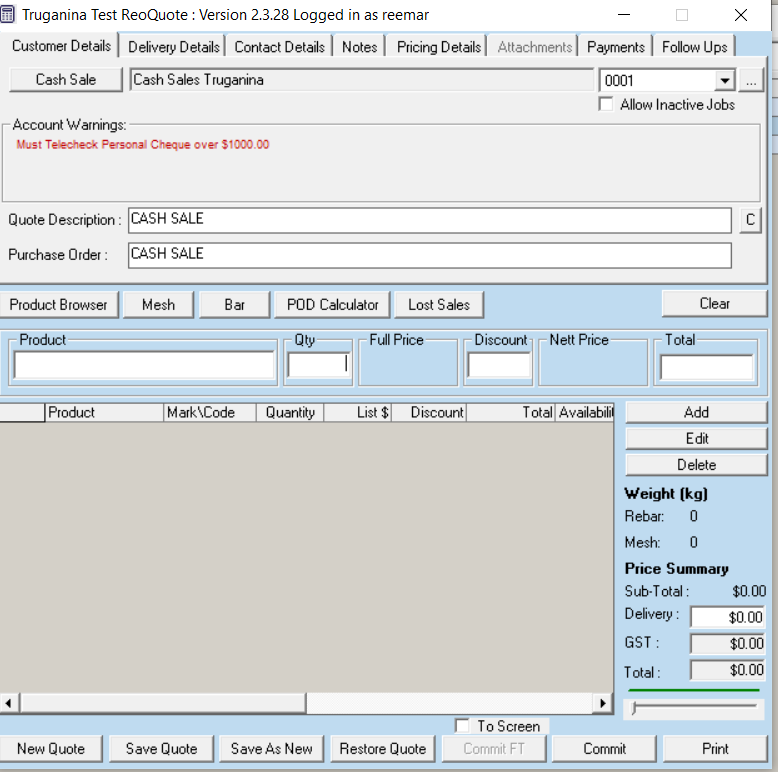

1. Open the ReoQuote application.

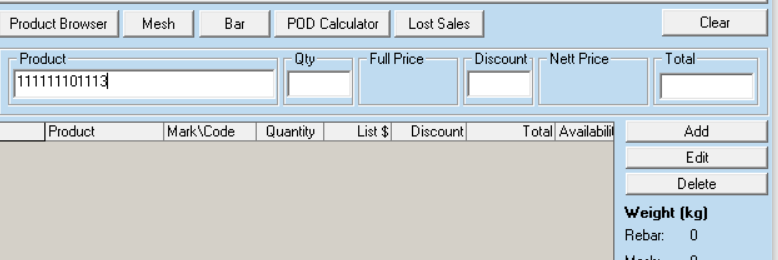

2. Enter barcode in the Product field and press enter.  For example: Product:- 111111101113

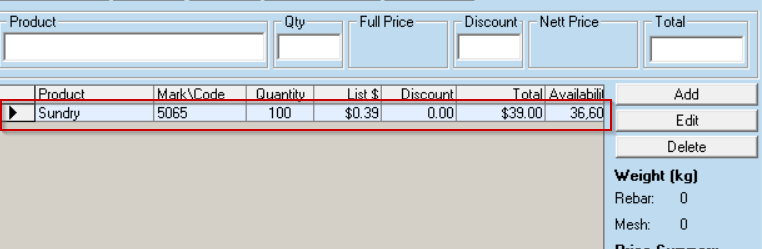

3. Automatically product will be added in the quote.

4. If you want to add more product through Barcode repeat the process again.
