Background
Bundle Tags can filter Schedules using a variety of methods to assist you in locating the tags you require.
Your filtered results will then be displayed in the Job Grid.
PLEASE NOTE: Customer name is highlighted in red/maroon if the customer account is on hold.)

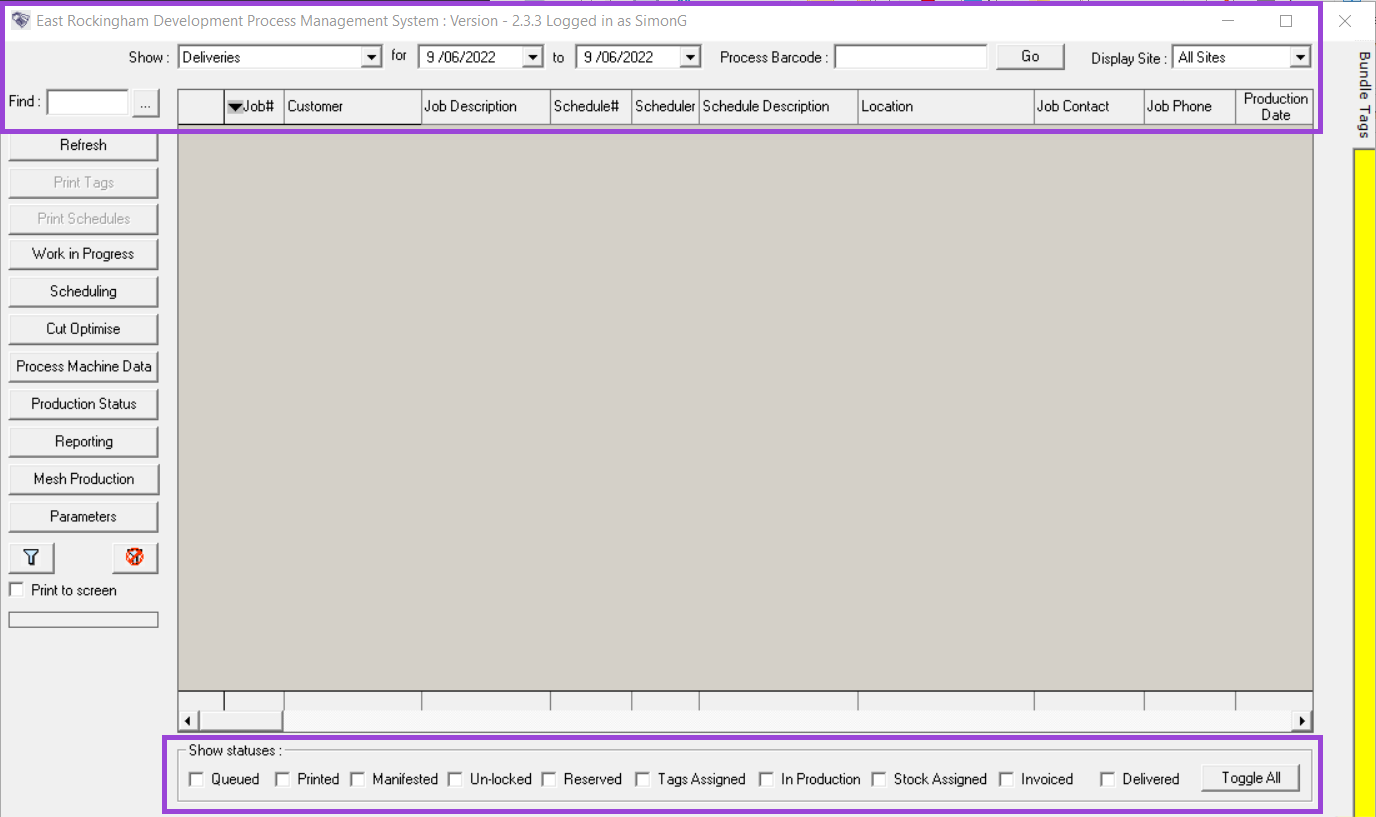

Find Control
The Find control allows you to search for a Schedule or range of Schedules by Job Number or Schedule Number.
Enter the Job Number or Schedule Number in designated textbox then click the "..." button or press Enter to display the Job's Schedules in the Job Grid
Delivery Site Dropdown Control
The Delivery Site dropdown allows you to filter Schedules by the branch or manufacturing facility the Schedules will be delivered from.
1. Set the required site or select All Sites to see Schedules across all branches.
2. Read on to filter schedules by any additional required criteria
3. Once you've set your filters, click the Refresh button to display the required Schedules.
Set the Show Statuses checkboxes
Tick the Show Statuses checkboxes below the Jobs Grid to display Schedules set to the statuses you wish to see.
1. Tick the checkbox next to the statuses you wish to display
OR
Click the Toggle All button to tick all the Status tick boxes.
2. Read on to filter schedules by any additional required criteria
3. Once you've set your filters, click the Refresh button to display the required Schedules.
Show Dropdown Control
Select the type of tags you want to display. These include: Deliveries, Production, Tags Unprinted, Schedules Unprinted, Outstanding Deliveries, Scanned Production, Scanned Deliveries, Production Delivery Summary, Manifests.
Filter by Production Dates
To filter the Schedules in the Job Grid by a range of production dates:
1. Set the Show Control Dropdown to Production.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.
Filter by Delivery Dates
To filter the Schedules in the Job Grid by a range of delivery dates:
1. Set the Show Control Dropdown to Deliveries.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.
Filter to Show Unprinted Tags
To filter the Job Grid to show Schedules with Unprinted Tags:
1. Set the Show Control Dropdown to Tags Unprinted.
2. Click the Refresh button.
Filter to Show Unprinted Schedules
To filter the Jobs Grid to show unprinted Schedules:
1. Set the Show Control Dropdown to Schedules Unprinted.
2. Click the Refresh button.
Filter by Outstanding Deliveries
To filter the Jobs Grid to show Schedules with Outstanding Deliveries within a range of delivery dates:
1. Set the Show Control Dropdown to Outstanding Deliveries.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.
Filter by Scanned Production Tags
To filter the Jobs Grid to show Schedules with Scanned Production Tags within a range of delivery dates:
1. Set the Show Control Dropdown to Scanned Production.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.
Filter by Scanned Delivery Tags
To filter the Jobs Grid to show Schedules with Scanned Delivery Tags within a range of delivery dates:
1. Set the Show Control Dropdown to Scanned Deliveries.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.
Filter by Production Delivery Summary
To filter the Jobs Grid to show Schedules that are marked as Delivered within a range of delivery dates:
1. Set the Show Control Dropdown to Production Delivery Summary.
2. Set the starting production date in the For calendar control.
3. Set the ending production date in the To calendar control.
4. Click the Refresh button.

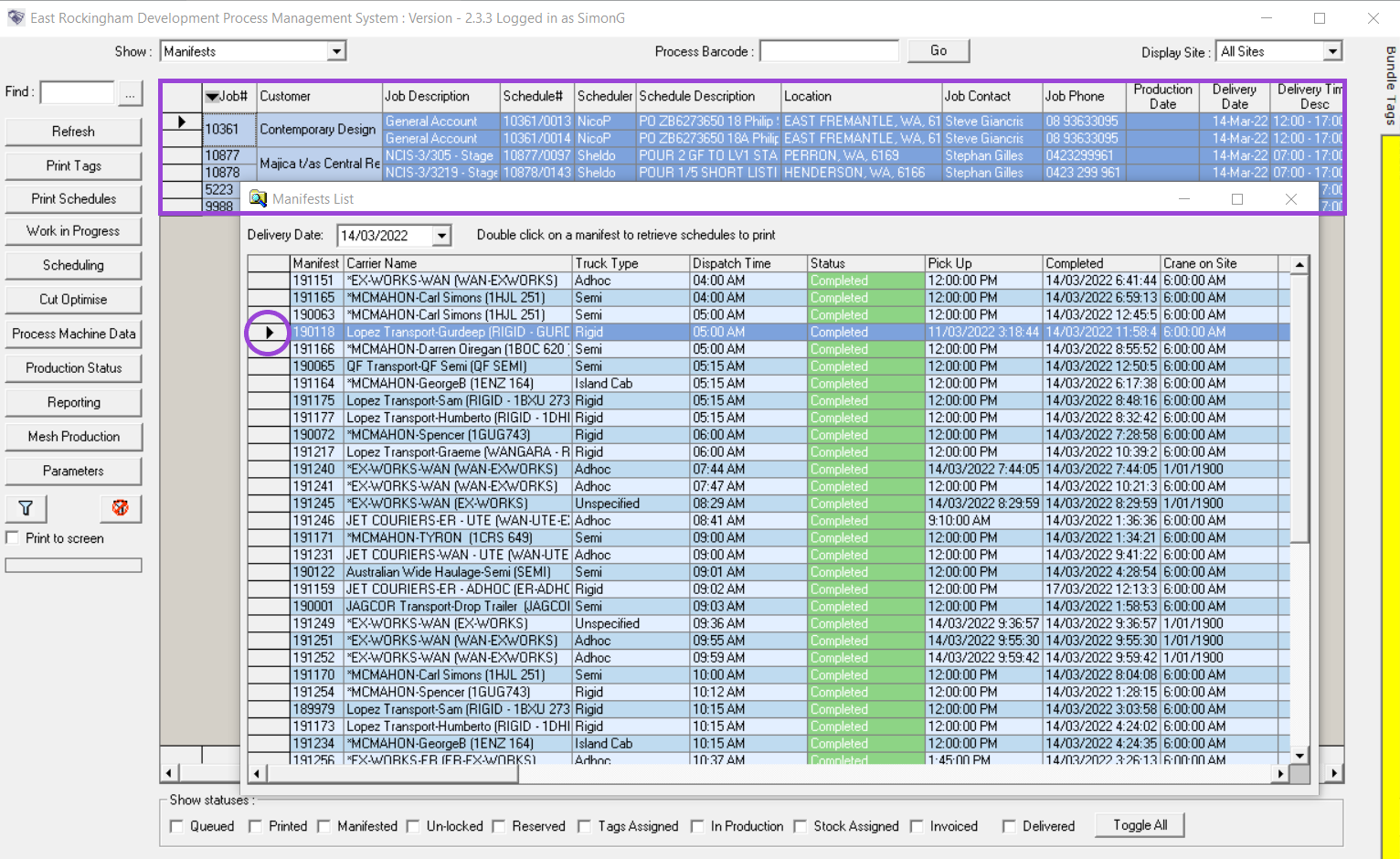

Filter to Show Schedules on a Manifest
To display the Schedules in Jobs Grid associated with a particular Manifest:
1. Set the Show Control Dropdown to Manifests.

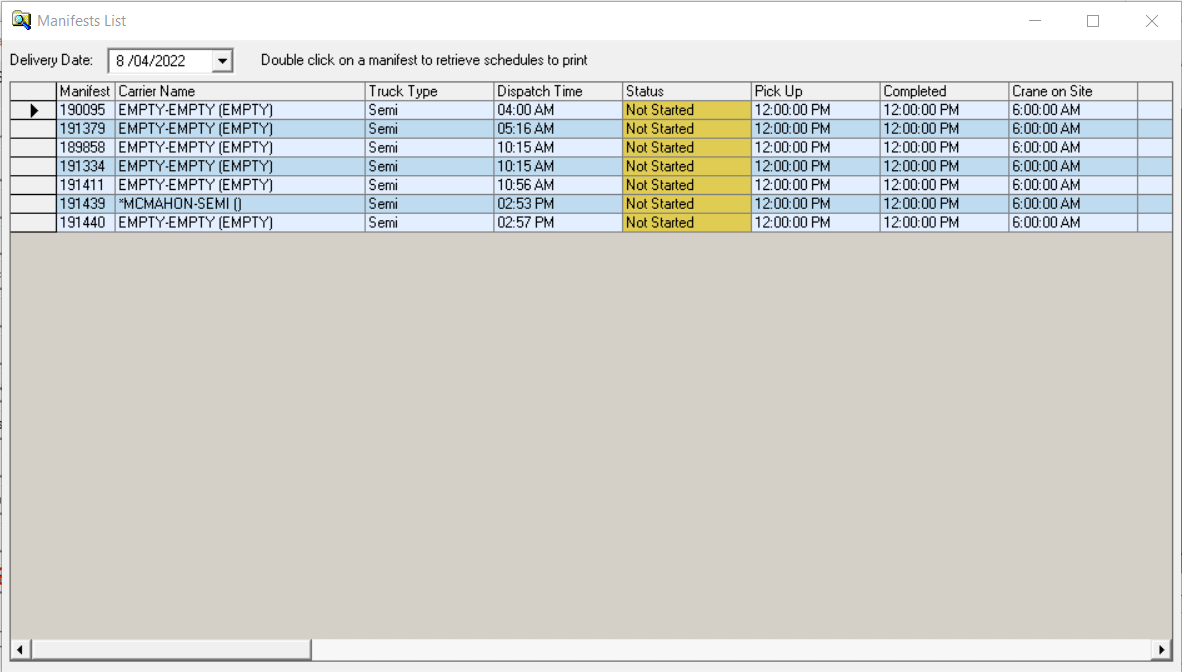

This will open the Manifest List window.

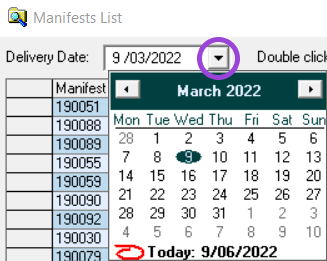

2. Use the Delivery Date calendar control to select the delivery date of your selected Manifest.
3. Double click the row selector on the required Manifest to open its Schedules in the Job Grid.

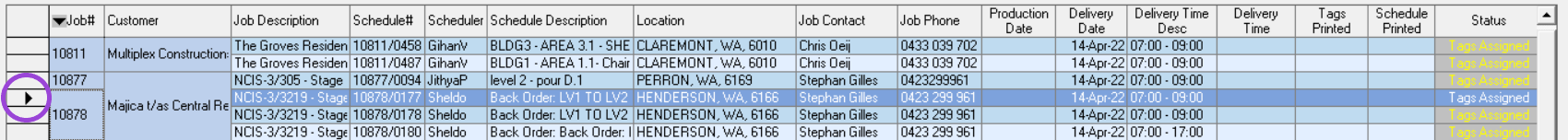

Filter to Show Schedules from a Single Job
The Job Filter Controls allow you to isolate all Schedules currently visible in the Job Grid for a selected Job.
1. Double click the row selector on a Schedule in the chosen Job.
2. Click the Filter Control to isolate Schedules for the Job.
3. To clear the Job filter, click the Unfilter Control.
