Working with Shapes

Background

The Shapes tab allows you to add new shapes or edit existing shapes for rebar.


Before you begin

  • Ensure you are logged into the Elda(Chrome) Products Application.  See our article Getting Started with Products for more on accessing the Products module.
  • Ensure you are in the Shapes tab.

View/edit an existing shape

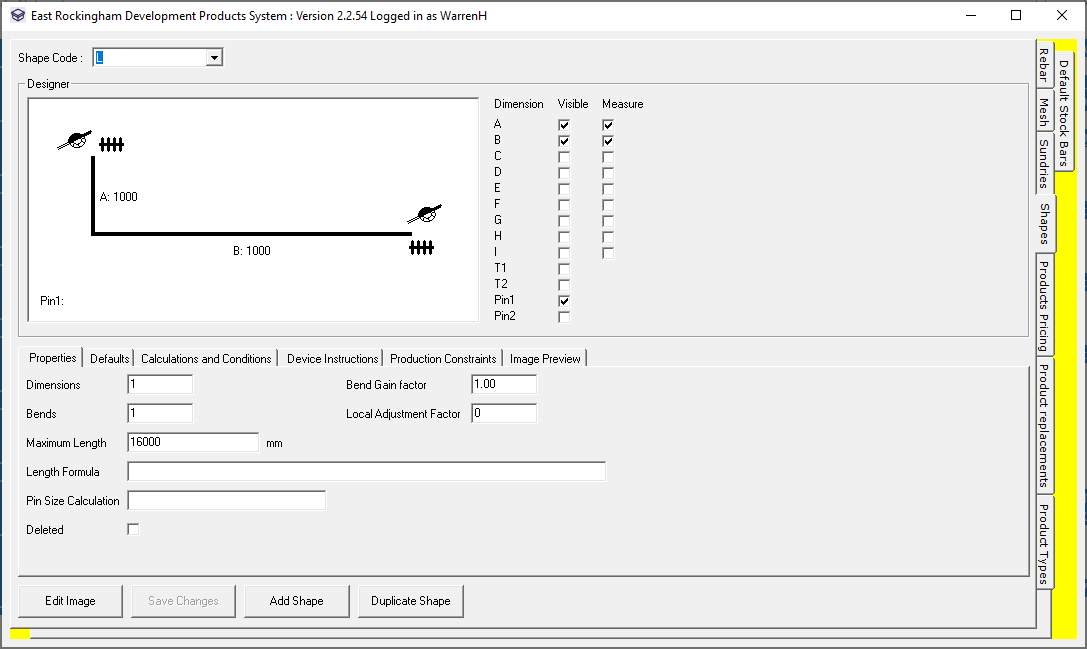

1. From the shape drop down, select the shape you wish to view/edit.

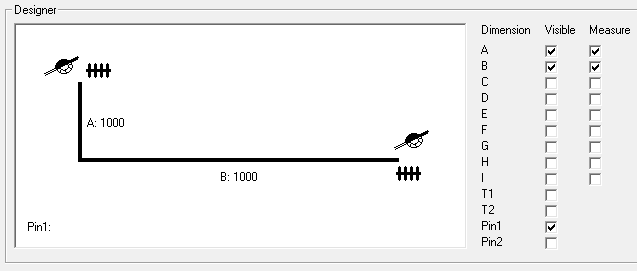

2. A preview of the shape populates. Edit the measurable sides by ticking the letters and if they require measurements.

E.G., This N16 Bar, customers can custom cut the sizes of A or B.

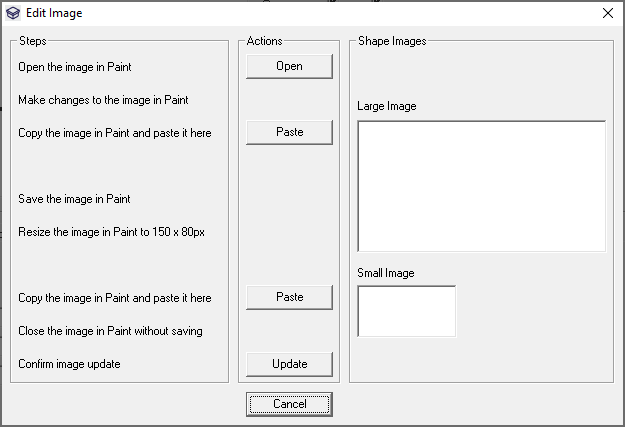

3. If the photo of the shape requires to be changes, select the Edit Image button on the left of the window and from the window select the new image.

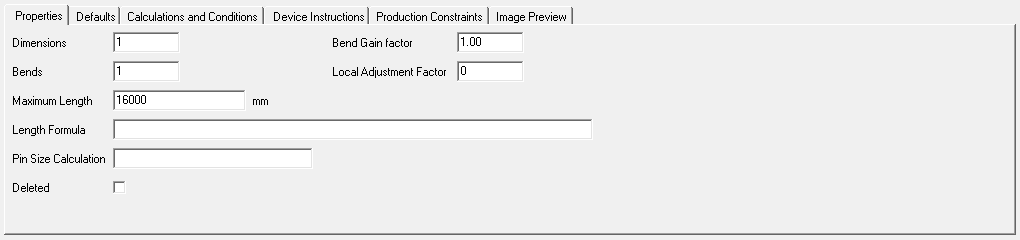

4. On the right of the window, you can set default settings to this shape.
