Printing Delivery Dockets

Before you begin

  • Ensure you are logged into the Elda (Chrome) Manifests application. If you don't see Manifests in your available Elda (Chrome) shortcuts, you may need to request access to it. Please see our article on how to Request Access to an Elda Application.
  • Ensure you are in the Manifest Details tab. See our Article Introduction to the Manifest Interface for more.
  • Delivery dockets can only be printed once the schedules within the selected manifest have been allocated to a manifest run. See our article on Adding Schedules to a Manifest for more.

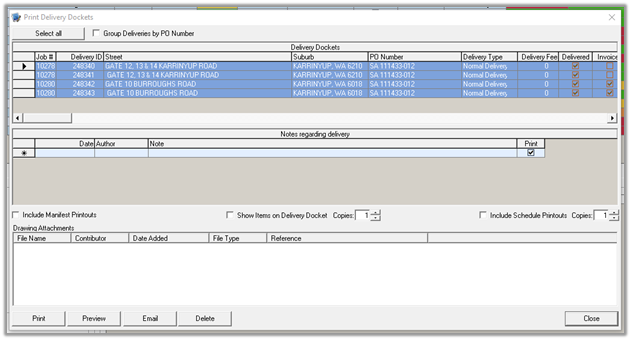

Delivery Docket Interface


Features
Functionality
Select All
Will select all schedules.
Use Manifest Ordering Checkbox
Will display/print the schedules in the same corresponding order as they are in the manifest.
Group By PO Checkbox
Will automatically group schedules with the same purchase order number into one delivery docket ID number.
Notes regarding delivery
Add any notes regarding the delivery and tick print to have them display on the delivery docket.
Included Manifest Printout Checkbox
Will print out the manifest paperwork when printing delivery dockets.
Show Items on Delivery Docket Checkbox
Will display a breakdown of the product items on the delivery.
Include Schedule Printout Checkbox
Will print out a copy of the schedule when printing the delivery docket.
Drawing Attachments
Will display any mark-up drawings that need to be printed for the schedules being delivered to site.
See our article on Printing Marked Drawings within the Delivery Docket Window.


Steps to follow

  1. Select the Manifest which you’d like to print by clicking the grey box next to the manifest.

    For help locating an existing manifest, see our article on Finding an Existing Manifest.

  2. Select the Delivery Dockets button to open the Print Delivery Dockets window.

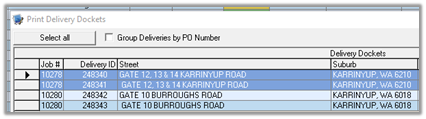

  3. Select the jobs you wish to have their delivery dockets printed out. (Multiple jobs can be selected.)


    Or press the Select All button if you wish to select all listed jobs.

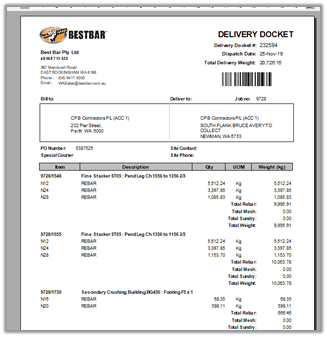

  4. Press the Preview button to print the docket to screen for viewing.




    OR

    Press the email button to send a PDF version of the delivery docket through email.




    OR

    Press the print button to print the delivery dockets.
