Shape (Rebar) Calculator


The Shape Calculator is a system to create and customize rebar items so that customers requested specifications can be met during production. The system includes a library of bar shapes images to assist users in determining the correct rebar items.

This system also allows users to generate a sequence of different sized rebar items so that they can be created when required.


Before you begin

Accessing the Shape Calculator

1. With a schedule open, select the Rebar tab inside the Schedule Details section.

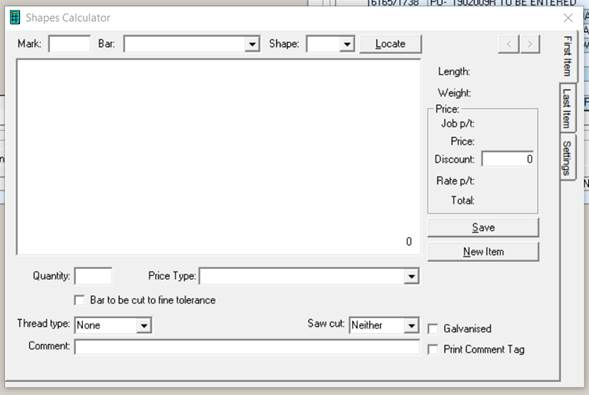

2. In Scheduler, click the Calculators button from the menu and select Bar Calculator from the sub-categories to bring up the Shapes Calculator window. image375

Using Shape (Rebar) Calculator

For more on using the Shape Calculator, follow our article Shape Calculator.
