Mesh Calculator

Background


PLEASE NOTE: Clear ReoQuote Items button is not available in Scheduler

The Mesh Calculator is a system to calculate how much mesh is required to fill an area with a given type of mesh allowing for standard overlap of the sheets. It can also calculate the number of selected sundries required for the number of sheets provided.

Shorthand methods are supplied to allow groups of products to be saved so that they can be used over and over. Such groups are termed “Composites”.


Before you begin


Accessing the Mesh Calculator

1. With a schedule open, select the Mesh tab inside the Schedule Details section.

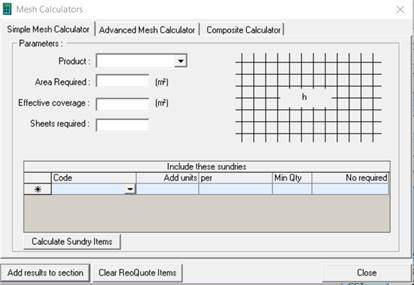

2. In Scheduler, click the Calculators button from the menu and select Mesh Calculator from the sub-categories to bring up the Mesh Calculator window   image325


Using Mesh Calculator

For more on using the Mesh Calculator, follow our article Mesh Calculator.
