Overview
This app supports the loading team by simplifying and guiding the truck loading process. It helps ensure accuracy, improve coordination, and reduce errors for a smoother, more efficient workflow.
Logging In
Log in by either entering your credentials manually or scanning the provided QR code.
These codes can be found in Elda reports.
Once logged in, you’ll need to scan your Employee ID which can also can be found in Elda reports. You will need to scan a manifest code in order to proceed to the home page.
Home Page
Once logged in you will find the following:
You will be able to display jobs assigned under the scanned manifest.
Navigation Tabs
- Current Details: Shows all jobs listed under the selected manifest.
- Photos: Upload supporting documents as proof of delivery. These are visible to the customer and useful for resolving disputes.
- Delivery Items: Add consumables used for loading. This helps track what's sent and ensures items are returned post-delivery.
- Load Scan: If scanning a tag fails, you can manually enter the barcode.
Manifest Loading
Use the Loading Bay and Loading Cell fields under Carrier Details at the top of the Manifests page to update any changes in truck location or loading equipment. Keeping these fields updated ensures the correct products are loaded onto the right truck.
Loading Status
Jobs marked various colours will indicate their loading progress, whether it is still being produced, partially loaded or completely loaded.
- Green: Fully Loaded
- Purple: Partially Loaded/ Unloaded
- Grey: Unproduced
Loading/ Unloading

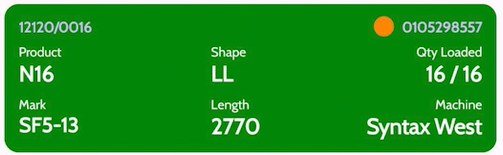

Click on your required job found on the manifest list to open the product list. This list will display key details, including:
- Schedule number
- Product code
- Load type
- Quantity loaded
- Machines

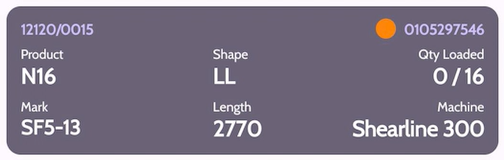

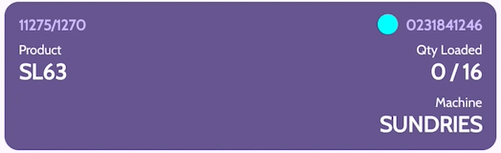

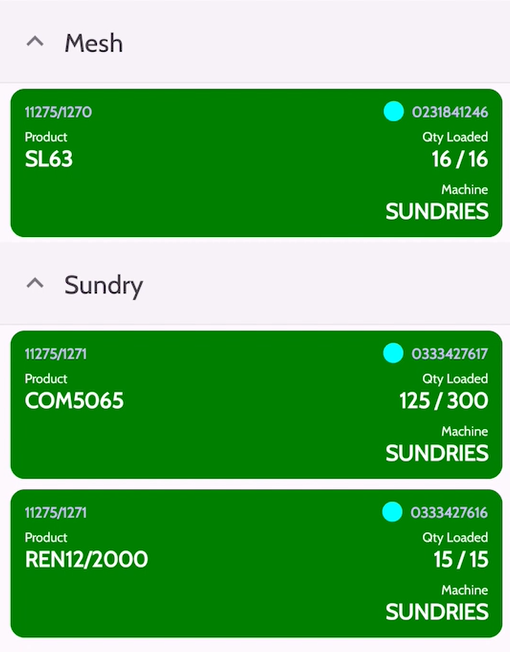

In the examples below you will see a Jobs current loading progress and products related to that job.
Load Types

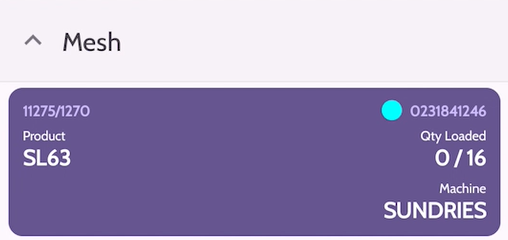

You will also see on the top right corner colours allocated to certain products, these are Load Types.
Load Types help visually separate loading jobs within the truck, making it easier to identify which items are designated for different delivery locations or customers.

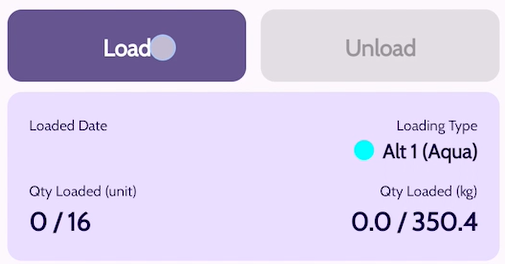

To mark a product as loaded, tap on an item to open the tag sheet, then select Load. This confirms the product has been placed on the truck and automatically updates the product details and the colour allocation to green as previously mentioned.
Alternatively, you can use your device to scan the product's barcode, which will also load the item and update the system accordingly.

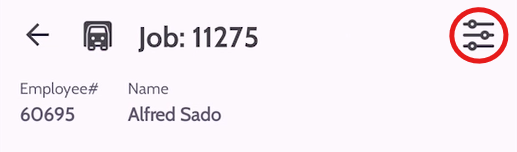

If an item needs to be unloaded due to a delivery change or packing error, go back to the Manifest page and select the relevant job. Then, tap the filter icon at the top right of the screen, by default, loaded items are hidden.
Enable Show Loaded to reveal all previously loaded items. From there, return to the Tag Page and select Unload. This action will mark the item as unfulfilled and remove it from the truck.
Back Orders

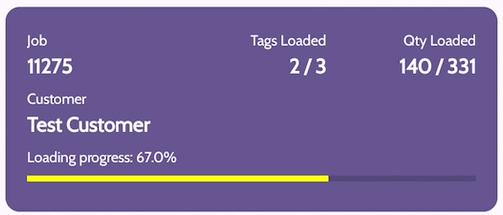

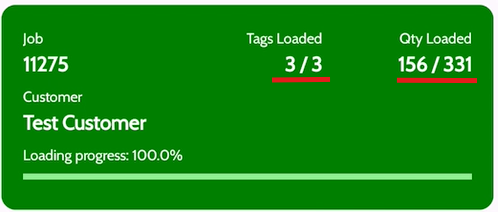

As shown below, all tags may be marked as fulfilled even if the total loaded quantity differs from the original order. This is because loading progress is tracked based on tags loaded, not the total quantity.
Any discrepancy in quantity typically indicates a insufficient stock. In such cases, the remaining quantity should will need to be backordered, to be produced and delivered at a later date.

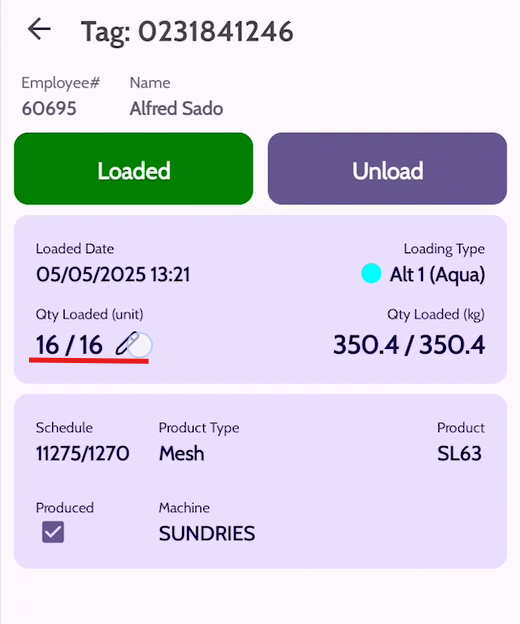

To trigger a backorder, return to the Tag Page within the app and edit the Quantity Loaded to reflect the actual amount loaded. Once you confirm the update, the system will register the change and notify the Manifest Team that a backorder is required.
Whiteboard

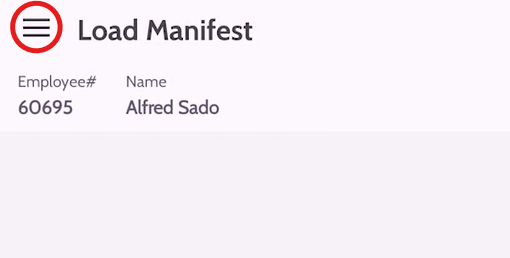

This section is a means to simplify the layout providing a calendar of the schedule deliveries. This section can be found by returning to the Manifest page and at the top left corner, you will be prompted to login again.

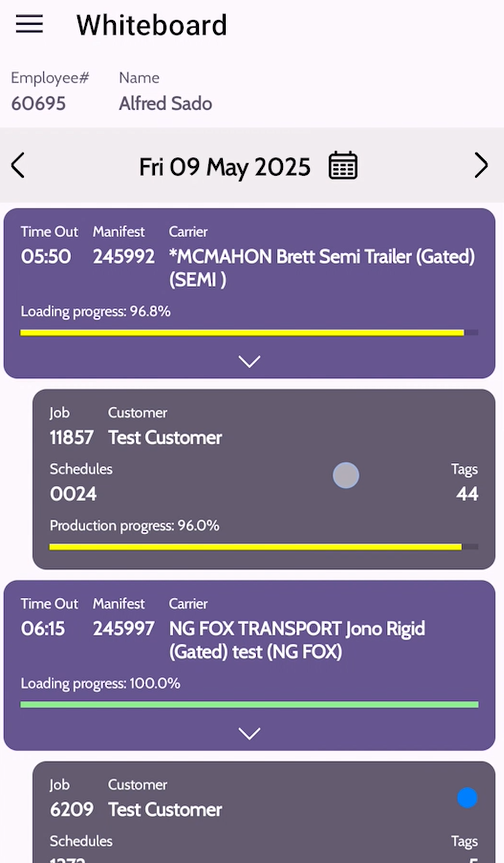

Once logged in, select your preferred date to view the shipments for that day. When you click the drop down on a manifest you will be able to see the jobs assigned to it along with the loading progress.

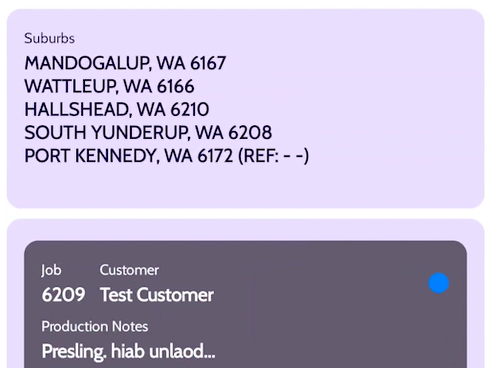

When selecting a manifest, a detailed list will appear listing the delivery suburbs for each job along with additional information:
- The delivery suburb for each job
- The job number, customer, and load type.
- Any relevant production notes

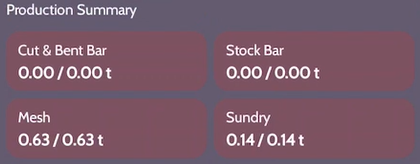

Below the job list, a production summary table provides an overview of the total tonnes scheduled for:
- Cut and Bent Bar
- Stock Bar
- Mesh
- Sundry Items
To return to the manifest selection screen and make further adjustments, scroll back to the top and click Load Scan.
Video Tutorial
Here is a link with our video that will give you a detailed run through of the app.
